A properly installed Nx Witness Maps integration will reside within the Integration Section of the Resources Panel of the Desktop Client where it shares data with other VMS components.

New Enterprise Edition Sites

Nx Witness Maps is included and with all Enterprise Edition 6.1 installations.

Existing Enterprise Edition Sites

Follow these steps to install Nx Witness Maps within an existing Enterprise 6.1 Organization.

1. Open the Desktop Client and login as an Administrator or Power User.
2. Click the 3-layer icon to open the Main Menu of the Desktop Client.
3. Select Add on the Main Menu and then click Integration from the Add sub-menu.

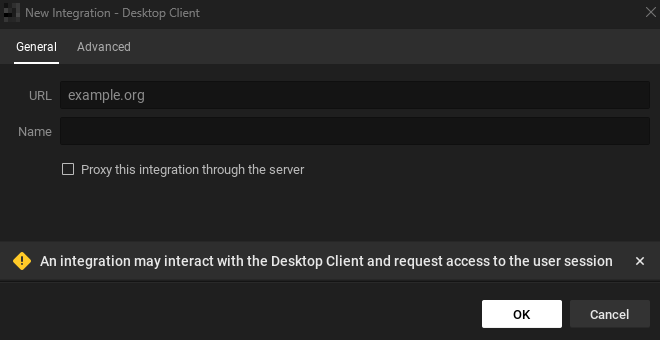

1. Enter the URL for the maps integration and a name for the integration into the configuration screen.

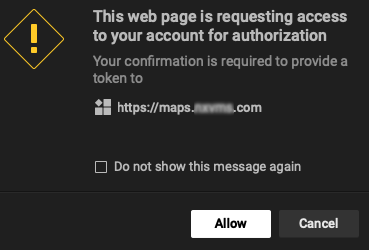

Authorize

The Nx Witness Maps integration must be granted access to you account before it can be opened.
