The In-Client JavaScript API provides programmatic access to Desktop Client features. Use this API to build custom web-based integrations and widgets that run directly inside the Nx Witness Desktop Client.

Global objects

The client automatically injects the following global objects into the JavaScript environment:

• vms: Manages global constants and methods.

• vms.log: Logs messages through the standard VMS logging system.

• vms.resources: Manages system resources.

• vms.tabs: Manages multiple client tabs.

• vms.tab: Manages the currently open tab.

• vms.self: Controls the active web-page widget.

• vms.auth: Retrieves authentication data.

Initialize the API

Global objects are unavailable until the initialization callback executes. To initialize the API, define the window.vmsApiInit function:

<script>
    window.vmsApiInit = async function() {
        vms.log.info("API initialized successfully.");
    }
</script>

Handle events with signals

Use signals to listen for client-side events. To attach an event handler, pass your callback function to the signal's connect() method:

vms.resources.added.connect(function(resource) {
    vms.log.info(`Added new resource: ${resource.name}`);
});

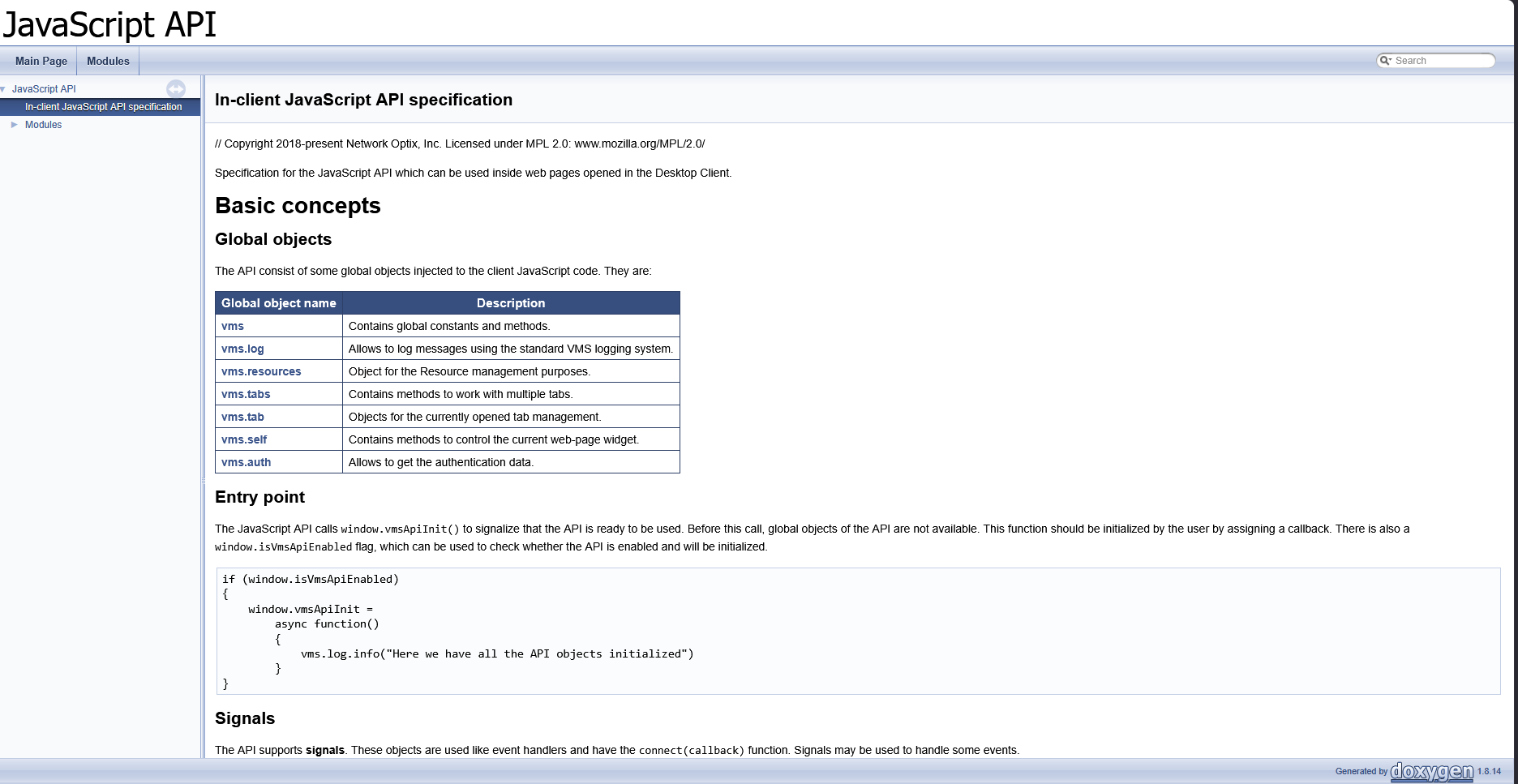

Access complete documentation

Each object operates as an independent module with its own methods and properties.

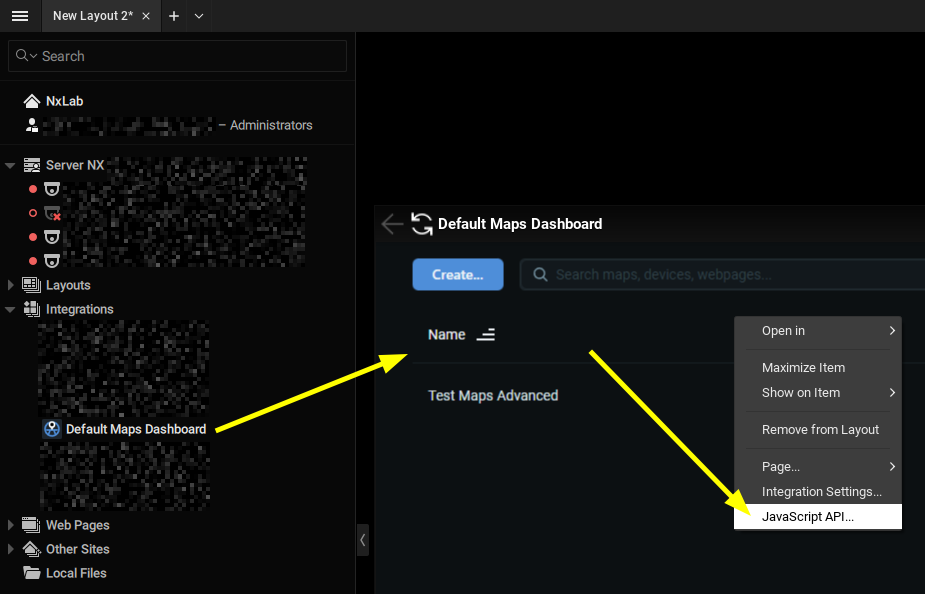

To view the complete API documentation inside the Nx Witness Desktop Client:

1. Drag any integration into the Main Window.

2. Right-click the integration.

3. Select JavaScript API.
