Generic Event sent via Mobotix IP Notify no longer working

In Progress

Follow

Ashley Grembka

• June 25, 2022 08:36
• Edited

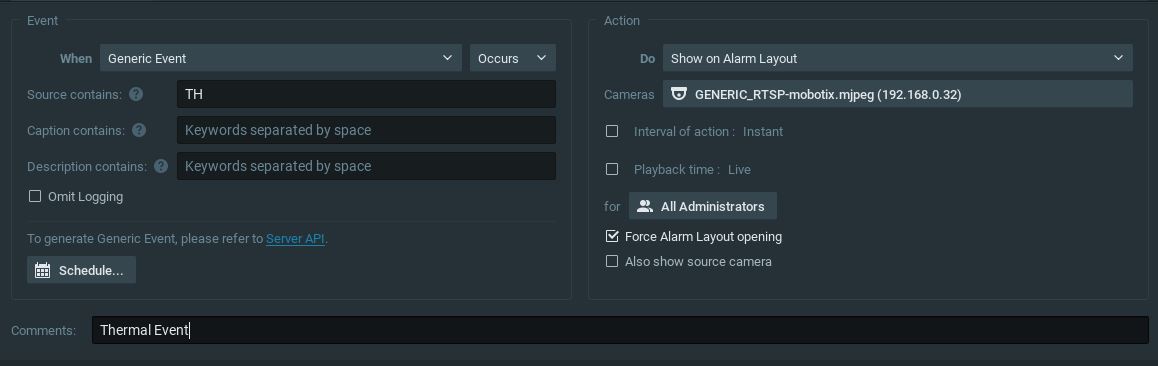

Hi Guys, I've noticed that recently my Mobotix cameras that are set to send Generic Events are no longer working on Nx. These were previously set to send an api event such as MxAS Motion, input events or thermal events.

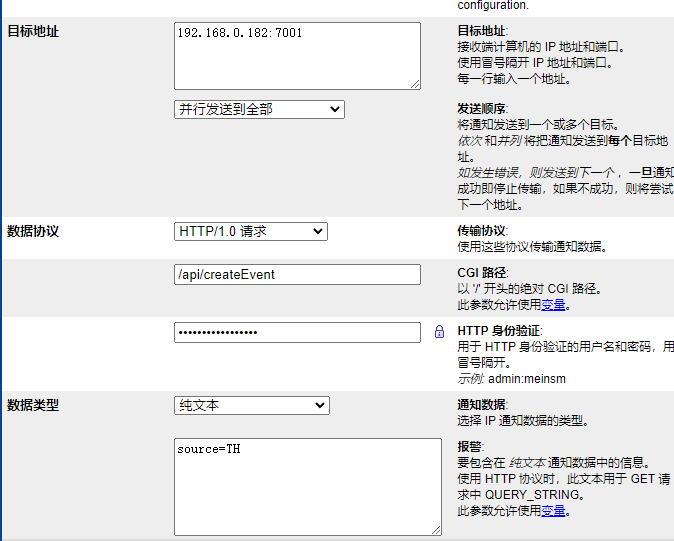

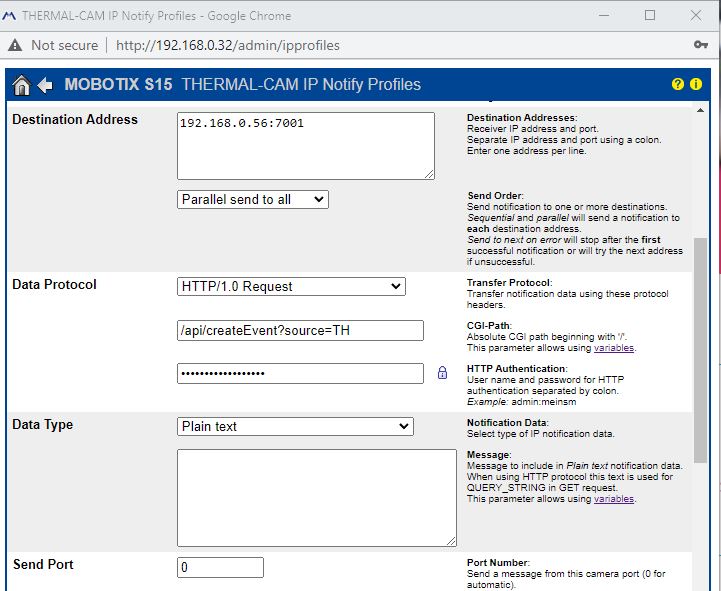

This is a description of the current setup in the Mobotix IP Notify Profile.

Transfer Protocol = HTTP/1.0 Request

CGI-PATH   /api/createEvent?source=TH

HTTP Authentication: username:password

This has previously worked fine however no longer works, I have tried a few variations and have confirmed the api works by pasting into a web browser.

Maybe one of the support techs could look at this?

I'm happy to provide more info if required.

0

•

  Norman - Nx Support

  • June 27, 2022 07:26

  Hi Ashley Grembka,

  Sure, we can have a look with you.

  So what I would suggest is the following;

  1. Start Wireshark on the server with the IP address of the Mobotix camera as the host filter.
  2. Create the event that should trigger the HTTP request.
  3. Stop Wireshark and check the HTTP communication to understand where the issue is.

  If you like, you can share the Wireshark pcap with us (as a download link) and we are more than happy to have a look as well.



  0
