Integrating Truvision ANPR TVB-5413

Completed

Comments

8 comments

  • Avatar
    Norman - Nx Support

    Hi Jimmy Vink,

    You can create any plugin through our Nx Meta developer program.

    That being said, as far as I know, TrueVision cameras are Hikvision OEM cameras, and we might be able to make the Hikvision plugin available for this particular camera.

    Can you share a screenshot of the Camera Settings menu, tab General that reveals the Vendor, Model, and Firmware?

    0
    Comment actions Permalink
  • Avatar
    Jimmy Vink

    Hi Norman,

    Thank you for the fast reply.

    I will look into NX Meta and yes most of the truVision camera's are Hikvision OEM's but this one looks different on the outside although the webbrowser UI looks Hikvision OEM. See below for the requested data.

    0
    Comment actions Permalink
  • Avatar
    Norman - Nx Support

    Hi Jimmy,

    Please follow the steps as described below:

    1. Remove the device from the system.

    2. Stop the mediaserver application and paste the resource_data.json file in THIS LINK at the following location:

      For Windows: C:\Program Files\Network Optix\Nx Witness\MediaServer
      For Linux: /opt/networkoptix/mediaserver/bin/

    3. Now start the mediaserver application again.

    4. Add the device again.

    To stop and start the media server, please do it as follows:

    For Windows: Open the task manager, select tab ‘Services’ find the mediaserver application, right-click and select; Stop or Start

    For Linux: Open the terminal (Ctrl+Alt+T) and enter the following command; sudo service networkoptix-mediaserver stop or sudo service networkoptix-mediaserver start.

    After this, the request should be fulfilled and the in-camera analytics should be available for this device.
    Please confirm, and we will add it to a future patch.



    0
    Comment actions Permalink
  • Avatar
    Jimmy Vink

    Hi Norman,

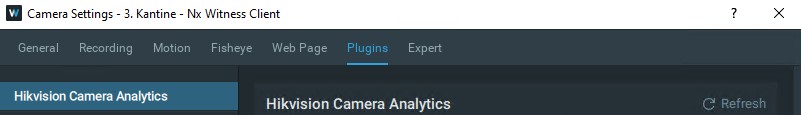

    Unfortunately no succes, the plugins tab is missing.

    Standard Hikvision camera.

    TruVision ANPR TVB-5413.





    0
    Comment actions Permalink
  • Avatar
    Norman - Nx Support

    Hi Jimmy Vink,

    Please check the Camera Rules menu, When if the Analytic Event can be selected, and under Event Type the various events can be selected.

    If this isn't the case, I'm more than happy to connect the device to my test environment to investigate the possibilities. This would require remote access through port forwarding. If this is possible, please confirm, and we'll convert this topic into a support ticket, so you can share the login details privately.

    0
    Comment actions Permalink
  • Avatar
    Jimmy Vink

    Hi Norman,

    We did some checks this weekends, we've made an error with the Json file. After doing it right we got a little bit further but not the succes we wanted. I will provide remote access today and send you the login details. See below for the steps we've made.

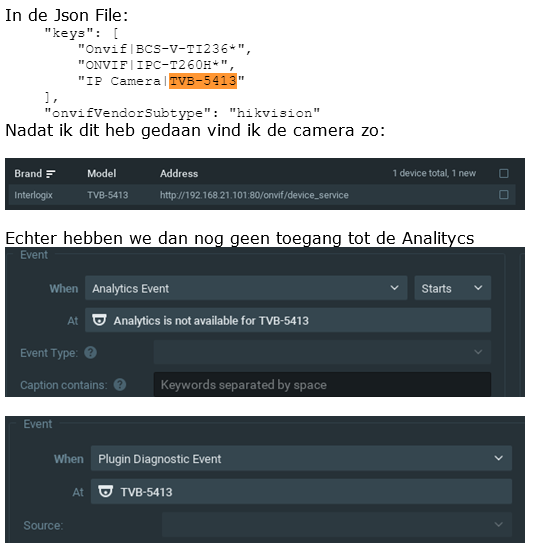

    Translations

    - in the Json file
    - After that I find the camera in a other wat then before.
    - However we still can not acces the analytics.

    0
    Comment actions Permalink
  • Avatar
    Norman - Nx Support

    Hi Jimmy Vink,

    I have created a support ticket on your behalf, so you can share the login details privately.

    0
    Comment actions Permalink
  • Avatar
    Norman - Nx Support

    Hi Jimmy Vink,

    We have not heard back from you in a while, so I have set the ticket to closed. Please note that you can reopen this ticket, and continue to receive support from us by simply replying to the applicable email, when it is more convenient and more time is available to engage in this ticket.



    0
    Comment actions Permalink
