After 6.1 upgrade the system graph thumbnail seems unnaturally small.

Answered

Jeff Jones

January 21, 2026 02:24 Edited

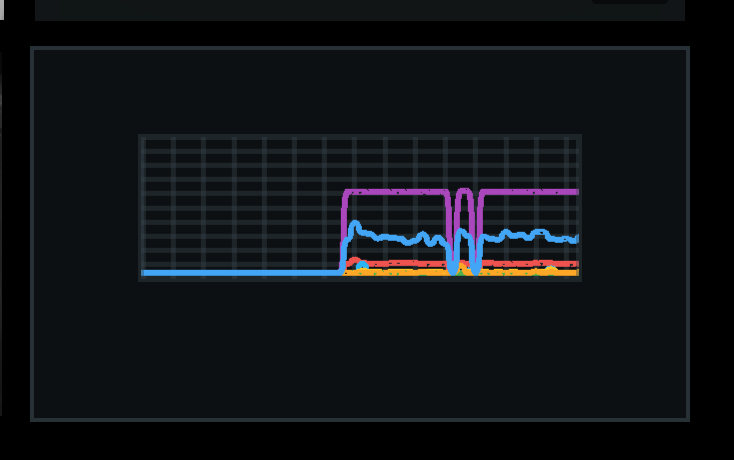

After we upgraded to 6.1 the system graph, in a smaller grid view, seems unnaturally small. Going full window with the graph looks fairly normal.

0

•

  Norman

  • Network Optix team

  January 21, 2026 08:10

  Hi Jeff Jones,

  Thank you for your feedback.

  The issue is known, and is currently worked on.
  We hope to have it resolved in the upcoming patch of 6.1.1.

  With kind regards.

  0
•

  Mark Edwards

  February 03, 2026 00:23

  Also the actual thumbnail of objects is blurry now also, wasn't like that before upgrade



  1
•

  Scott Donahue

  June 03, 2026 12:42

  Looks like it was fixed as far as the graph now scales up to fill the whole box with the percentage visible which is a nice touch but when you hover over it to expose the text description for the lines, the text is really really small. With my old eyes I have to squint to see it. The system wide colors also appear more dull and muted.

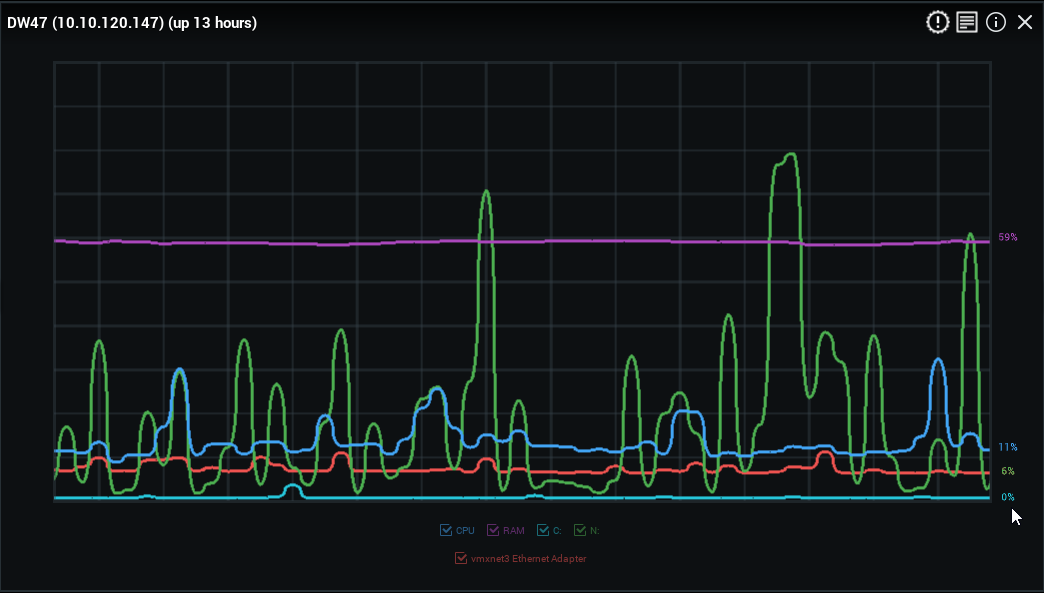

  Version 6.1.2.42921 smaller text size and muted colors



  Compared to Version 6.0.6.41837 regular text size and vibrant colors



  Muted colors on timeline also make it harder to see where there was a break in the recordings. See below example where I overlayed the timeline from version 6.0.6.41837 on top of timeline from version 6.1.2.42921. Even hard to see when not zoomed in so much. Please restore the old system colors.



  0
