I have a question about eventMetadata in metadataSDK

Answered

Permanently deleted user

July 05, 2020 15:43

Hi,

I want to know could I render the object bounding boxes and ROI in the

eventMetadataPacket?

0

•

  Andrey Terentyev

  • Network Optix team

  July 07, 2020 14:29

  Hello Aqua,

  Please, allow us some time. My estimation, on Friday 10th, Monday 13th I'll get back with an answer.

  0
•

  Permanently deleted user

  July 15, 2020 07:22

  Hi,

  Have any update on this?

  0
•

  Andrey Terentyev

  • Network Optix team

  July 15, 2020 15:01

  Hello Aqua,

  Could you please elaborate a bit about render the object bounding boxes and ROI? What is the expected result? What are trying to achieve?

  It this something similar to what we have discussed here ?

  https://support.networkoptix.com/hc/en-us/community/posts/360039368793/comments/360010580634

  0
•

  Norman

  • Network Optix team

  July 20, 2020 12:46

  Hi @...,

  I was just wondering if you managed to resolve the issue, or our support is still required?



  0
•

  Permanently deleted user

  July 27, 2020 02:24 Edited

  Hi,

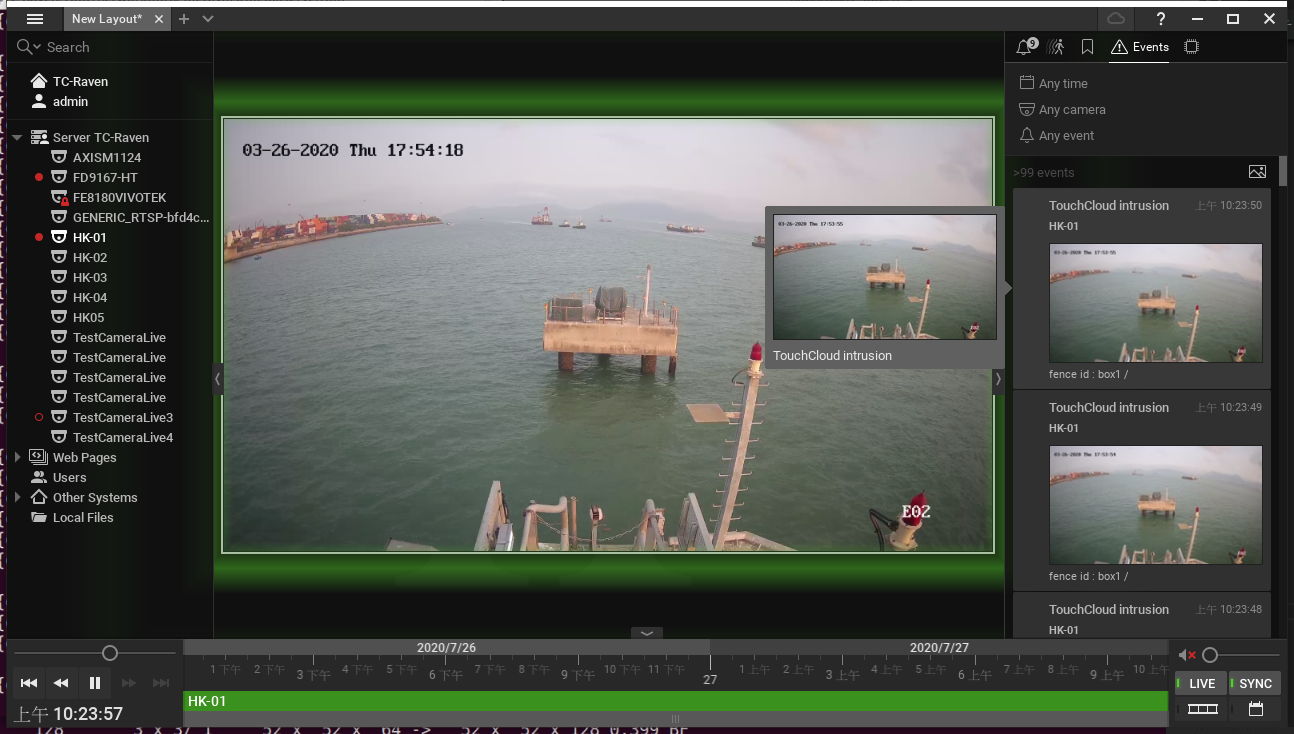

  I mean, can I show the ROI and bounding box on the analytics event  or  shapshot?

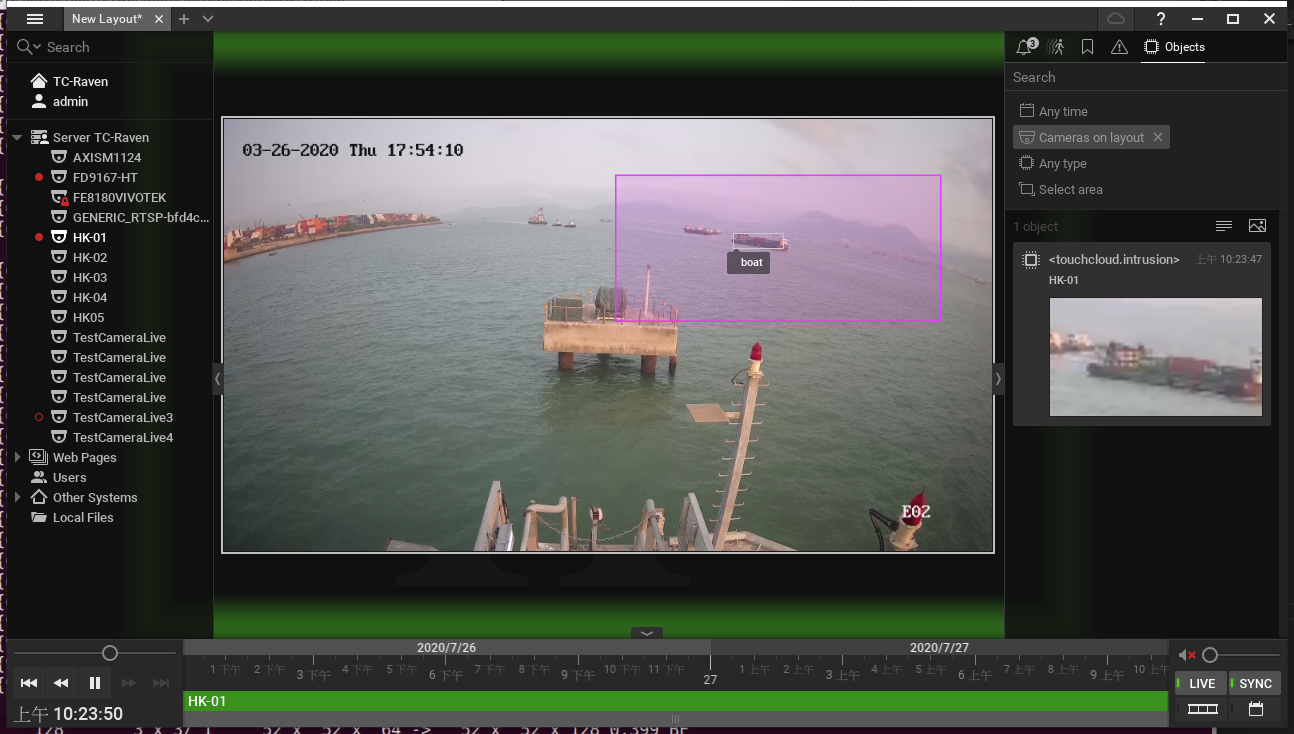

  So far, it only could show on the "Objects" window.





  0
•

  Andrey Terentyev

  • Network Optix team

  July 27, 2020 16:21 Edited

  Hello Aqua,

  ROI is just a setting sent to a plugin from Nx Desktop. This setting can be displayed on video in Nx Desktop but it's just a visual effect. It does not influence any metadata and is not written to the DB.

  Here is an idea for achieving your objective.

  You could reserve a special object type titled roiObject, for example, and generate objects of this type. Since your plugin can receive ROI setting values from Nx Desktop, you can assign a bounding box corresponding to these setting values to that roiObject-type object. You can send any parameters along to the bounding box, as well. These roiObject-type objects will be saved by the Server to the database and will be displayed even when are played from the archive.



  0
•

  Permanently deleted user

  July 29, 2020 07:20

  Hi,

  Thanks for your reply, I will try it.

  0
