Grid size limit of a layout

Answered

Gil MARCHAL

April 16, 2024 14:59

Hello,

I know that the layouts are limited to 64 cameras but would it be possible to increase the number of cells in the grid to more precisely adjust the cameras on the map?

It's a shame this limit of 64 cells...

0

•

  Norman

  • Network Optix team

  April 16, 2024 15:27

  Hi Gil MARCHAL

  The limit is 64 cameras, not 64 cells.

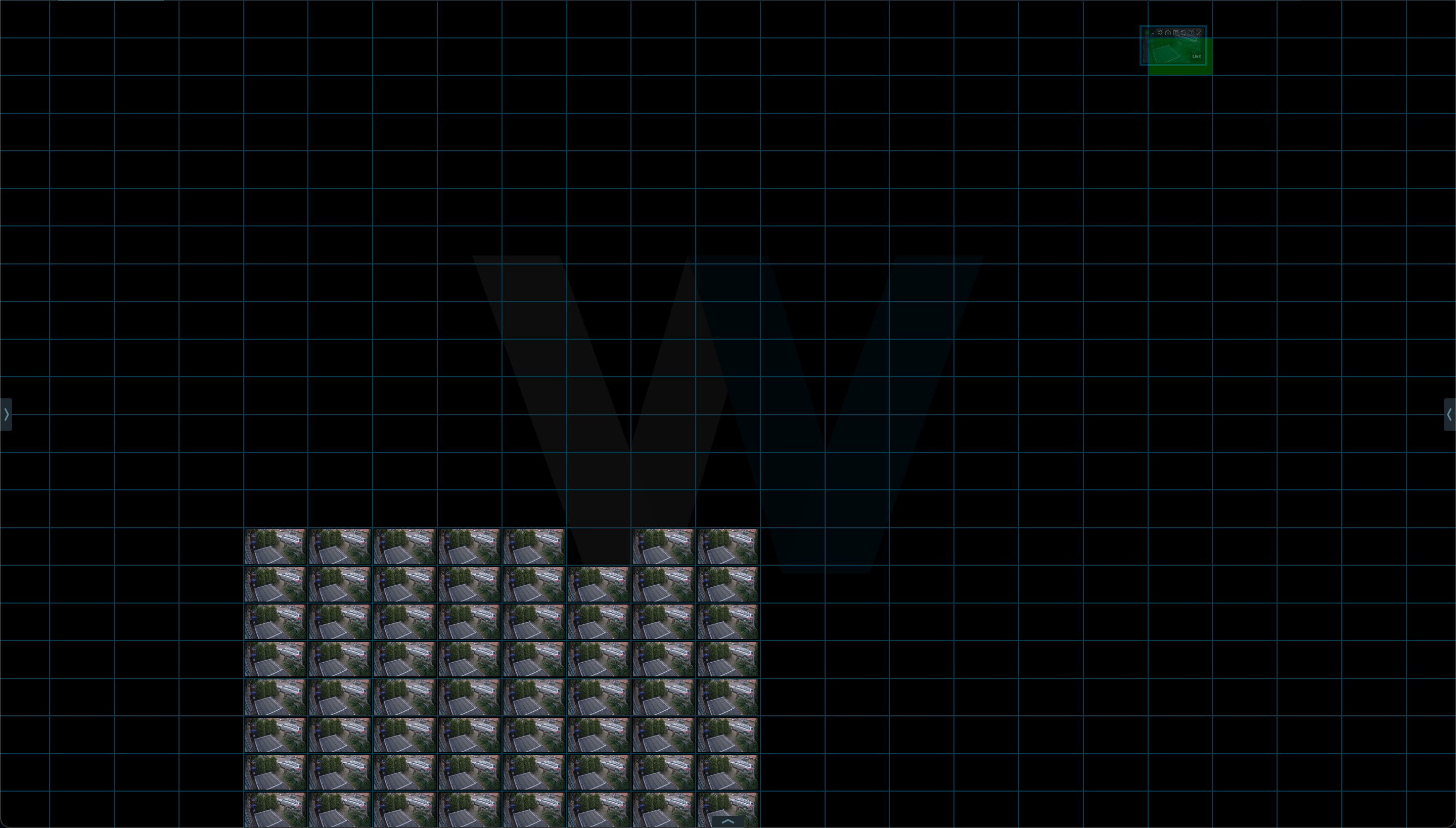

  See below, 64 cameras, but way more grid cells to enable you to position the cameras anywhere you want, and any ratio. The number of grid cells can be expanded even more.

  Also, the number of camera in a layout can be increased as well, but only in the configuration file of the client.
  However, typically more than 16 devices in a layout won't add much value, and often it makes more sense to add appropriate detection methods to display the desired images.



  1
•

  Gil MARCHAL

  April 17, 2024 09:07 Edited

  Hi Norman

  Sorry, I expressed myself incorrectly.

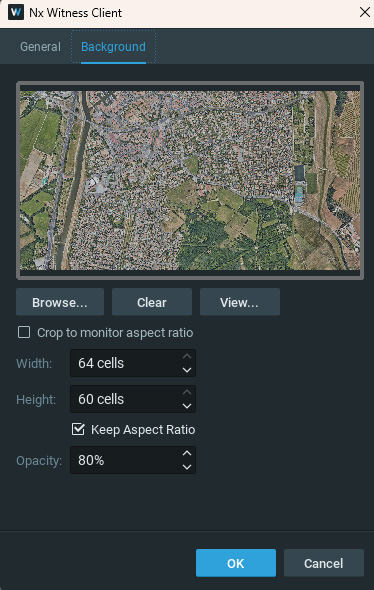

  I was talking about the number of cells when adding a background image, the maximum size of the side of the grid is limited to 64 cells as in the image.



  0
•

  Norman

  • Network Optix team

  May 15, 2024 09:16 Edited

  Hi Gil MARCHAL,

  Noted. Through these settings, the limitation is 64x64.

  0

Post is closed for comments.
