/api/setCameraParam Values

Answered

Permanently deleted user

April 15, 2022 10:59

Hello,

Where can I find a list of parameters that can be set using /api/setCameraParam

Thanks

0

•

  Andrey Terentyev

  • Network Optix team

  April 15, 2022 16:42

  Hello Yaron Chermak,

  Could you please elaborate your objective? What are you trying to achieve with this API?

  0
•

  Permanently deleted user

  April 16, 2022 14:27

  According to the API documentation the function /api/setCameraParam "Sets values of several camera parameters. These parameters are used on the Advanced tab in camera settings. For instance: brightness, contrast, etc.". We would like to know which paramValues could we use for this function in order to change the brightness and contast options for instance for the following camera.

  Thanks in advance.





  0
•

  Andrey Terentyev

  • Network Optix team

  April 18, 2022 10:36 Edited

  Hi Yaron Chermak,

  The procedure is the following:

  1. Call  /api/getCameraParamManifest?cameraId=[cameraId]

  You'll get a structure in what you could find an id of the parameter the value of which you want to change.


  2. Call /api/setCameraParam

  JSON object to be passed should have the structure


  {
    "cameraId":"<camera id>",
    "paramValues":{"<parameter id>":"<parameter value>"}
  }

  Here is an example.

  In my lab, I have a camera with these advanced parameters.



  I want to change "Max Exposure Time"

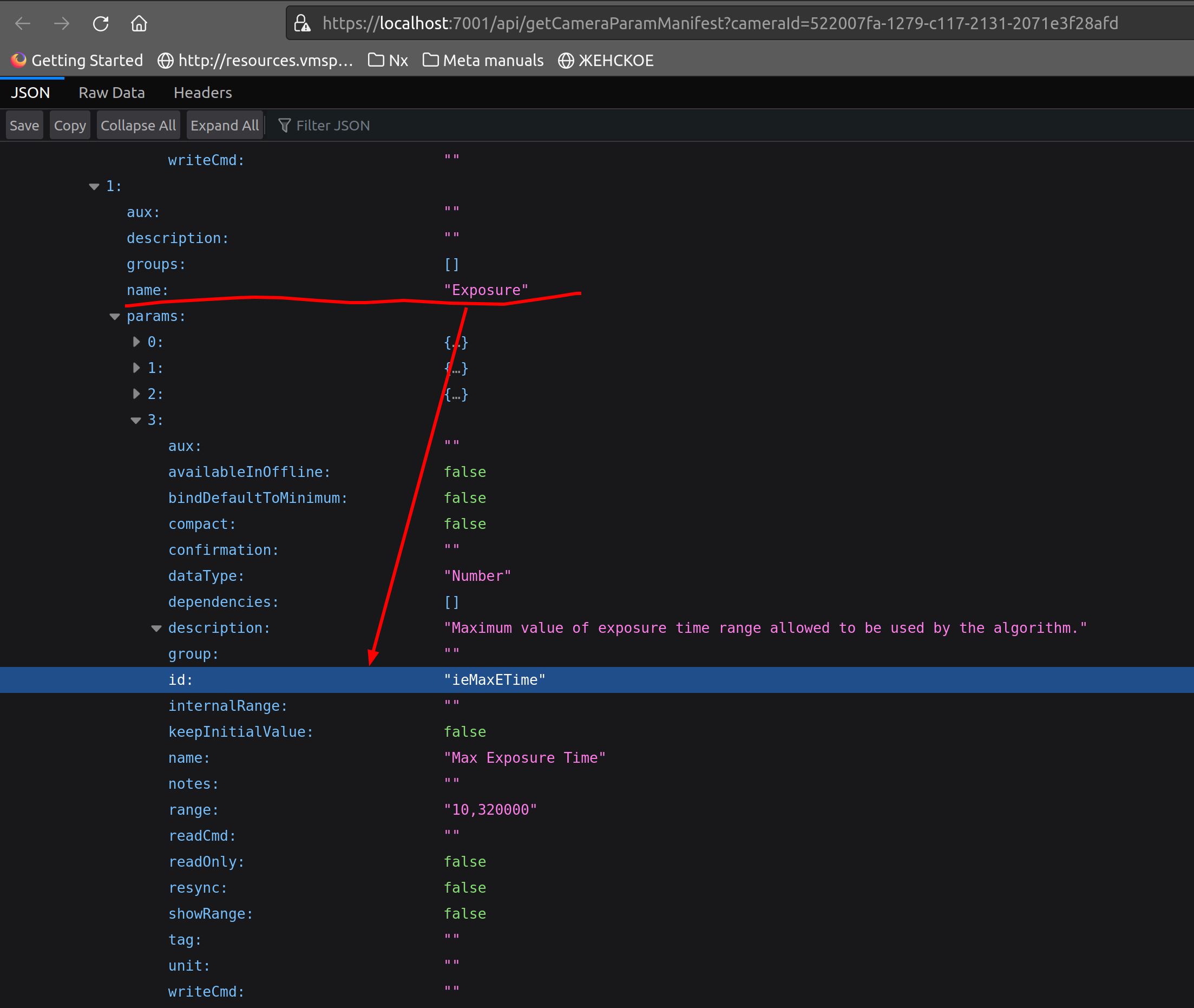

  Here is the quotation from the getCameraParamManifest output



  Here is the code changing the value of the parameter having the "ieMaxTime" id.

      payload = {
              "cameraId": "522007fa-1279-c117-2131-2071e3f28afd",
              "paramValues": {"ieMaxETime" : "1000"}
          }

      result = request_api(
         SERVER_URL,
         f'/api/setCameraParam',
         'POST',
         auth=HTTPDigestAuth(USERNAME, PASSWORD),
         json = payload,
         verify = False)

  0
