RelativeFocusPtzCommand

Answered

Permanently deleted user

April 15, 2022 10:53

Hello,

Is there any place I can find documentation or sample for RelativeFocusPtzCommand in the Rest API?

Thanks

0

Comments

3 comments

Andrey Terentyev

Network Optix team

April 15, 2022 16:44
Hello Yaron Chermak,

Could you please elaborate your objective? What are you trying to achieve with this API?
0
Permanently deleted user

April 16, 2022 13:55
Hello

We are trying to programatically change the focus to a supported camera. We saw that rhe command RelativeFocusPtzCommand exists in the patch, but couldn't find any documentation or samples.
0
Andrey Terentyev

Network Optix team

April 18, 2022 12:40
Hello Yaron Chermak,

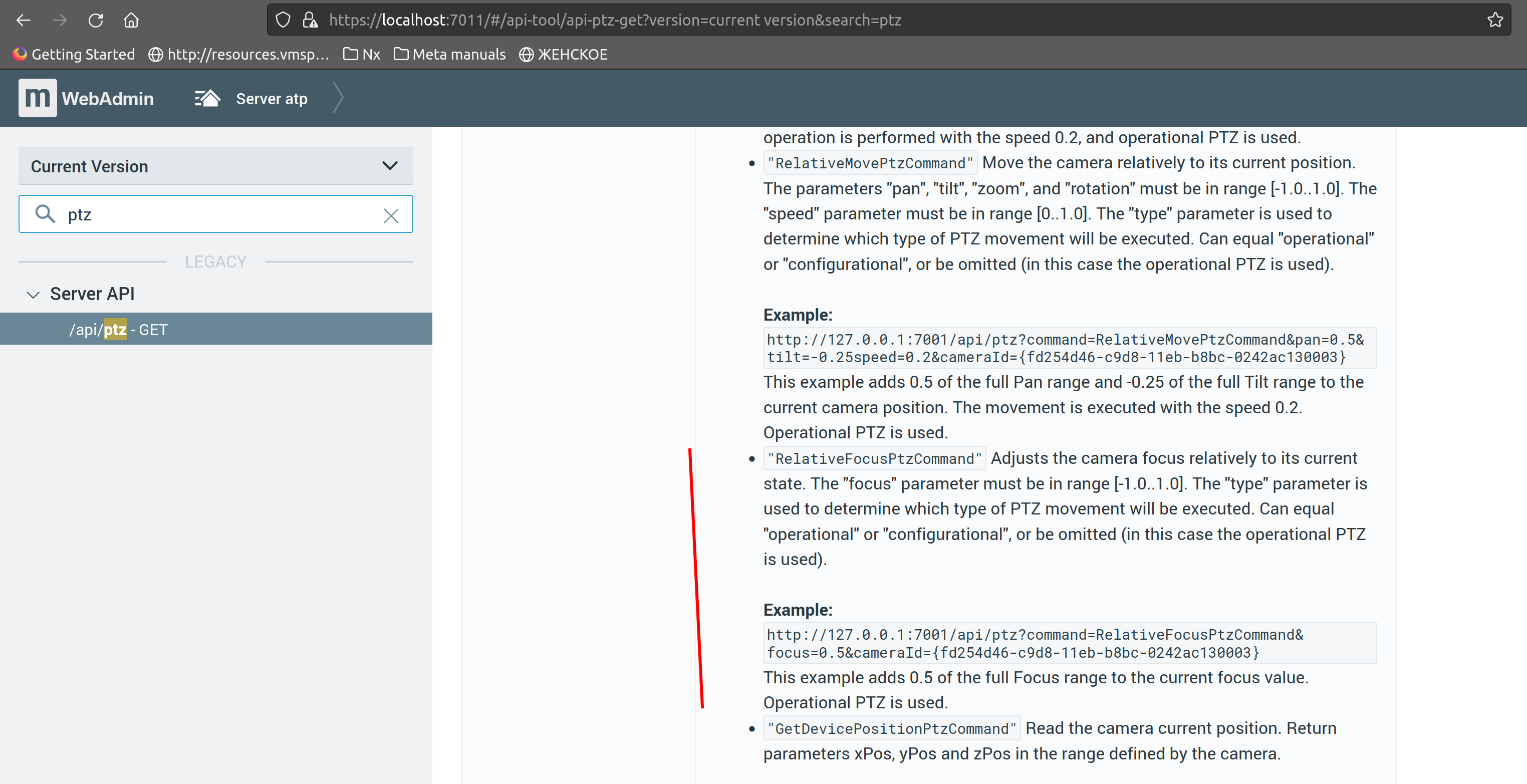

You can find documentation and examples in the built-in web interface of the Server of version 5.

You could use Nx Meta R6 for that.

Here is a quotation.

"RelativeFocusPtzCommand" Adjusts the camera focus relatively to its current state. The "focus" parameter must be in range [-1.0..1.0]. The "type" parameter is used to determine which type of PTZ movement will be executed. Can equal "operational" or "configurational", or be omitted (in this case the operational PTZ is used).

Example: http://127.0.0.1:7001/api/ptz?command=RelativeFocusPtzCommand&focus=0.5&cameraId={fd254d46-c9d8-11eb-b8bc-0242ac130003} This example adds 0.5 of the full Focus range to the current focus value. Operational PTZ is used.
